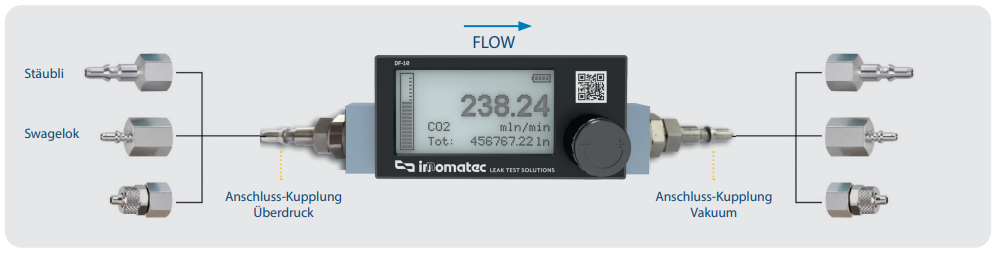

德国innomatec的泄漏模拟器（DF-10/DF-50）是一款流量计，可验证泄漏测试仪器是否正确校准到指定的泄漏率。当连接到测试仪器时，泄漏模拟器会测量并显示外部孔口处的流量。它也可以用作在线流量计来验证仪器设置，带有特殊的适配器。
泄漏模拟器易于设置，提供入口和出口螺纹，并由内部 AA 电池供电。该流量计是确保泄漏测试系统按照规范准确工作的理想工具。
描述
◆泄漏仪器校准器和泄漏模拟器
◆测量实际质量流量，不受压力或温度变化的影响
◆直接插入所有 CTS 和 innomatec 仪器，并且可以插入或连接到大多数竞争对手的仪器
◆高速 32 位处理器
◆工作压力：-0,8 至 10 barg（-11.6 至 145 psig）
◆系统泄漏率：1 x 10-6 mbar l/s He
◆触摸屏显示
优势
◆高精度和可重复性
◆触摸屏显示
◆紧凑的设计
◆直观的用户界面
◆直接插入仪器外部泄漏端口
Use as a leak instrument calibrator and leak simulator
-
High accuracy and repeatability
-
Touchscreen display
-
Plugs directly into external leak port of instrument
-
Compact design
-
Powered with standard AA battery
-
Intuitive user interface
Product Overview
-
Measures real mass flow, independent of changes in pressure or temperature
-
Plugs directly into external leak port on all innomatec, and CTS instruments, and can be plugged or connected to most competitor instruments (adapters/couplers may vary)
-
Can be used with negative and positive pressure
-
High-speed 32 bit processor
-
Operating Pressure: -0,8 to 10 barg (-11.6 to 145 psig)
-
System Leak rate: 1 x 10-6 mbar l/s He
-
Touchscreen display: 56 x 28 mm (2.2 x 0.95 in)
-
Precision valve
-
Backlight enabled with input from external
-
Micro-USB power supply
-
Variable display orientation allows operation in any position
-
Password protection
Display
-
Icon menu screen for easy navigation
-
Automatic display adjustment
-
Wide range of measurement units for both normal flow, and standard flow, and other units
